50/11 Slim

Space Saving Solution

Specially designed automatic landing door, either for new installations in existing buildings or renovations with limited space in shaft.

Advantages and Features:

– A wide range of options and certifications is available
– Narrow sill (AL60mm & AL90mm)

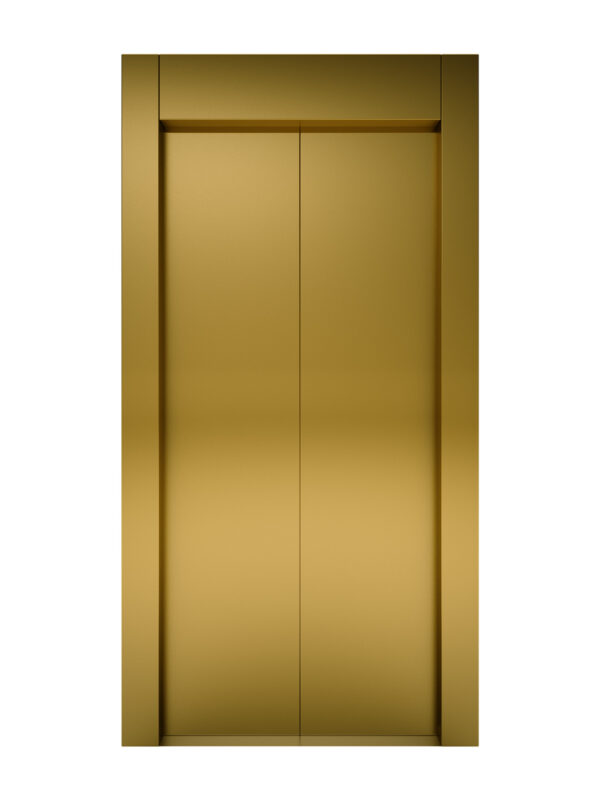

–  Extensive variety of Ral and stainless steel finishings
– Colored anodized sill options
– Up to 240 cycles per hour
– Up to 800.000 cycles per year
– Up to 3 m/s maximum lift speed
– Noise level < 53db
– Pre-adjusted & tested prior to final packaging to simplify installation

– Protective paint film & top quality packaging

Category:

Description

The new version of 50/11 Slim automatic landing doors includes improvements in the features over its predecessor. With a more streamlined structure and precision engineering, this version offers significant space saving and optimizes the lift shaft dimensions. This product line is recommended for modernization projects with narrow sill requirements, as well as for new installations in residential elevators with limited space.
Recommended Use

Standard

HOME LIFTS
RESIDENTIAL
HOTELS
HOSPITALS
OFFICES
COMMERCIAL

The recommended use is indicative only, and various factors such as the purpose of use, the hourly and annual number of cycles and the lift speed should be taken into consideration.

Characteristics

Standard

Fire Resistance

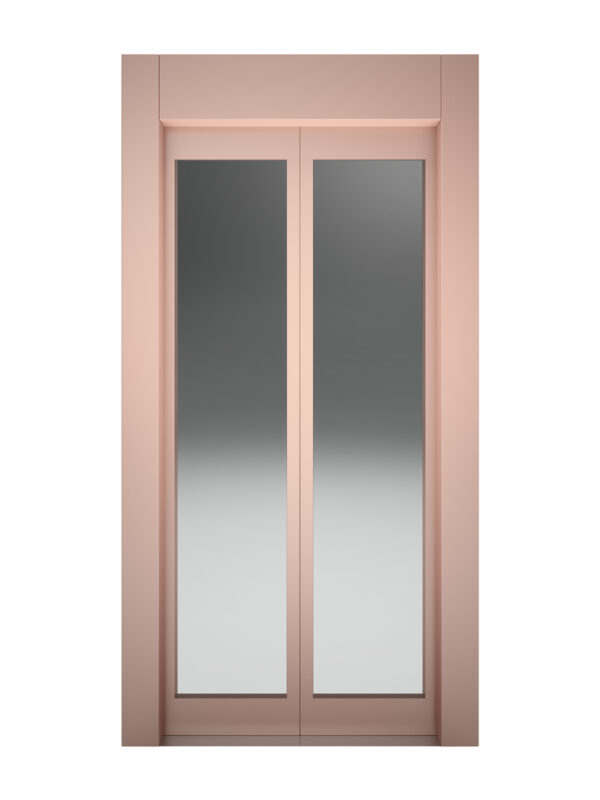

Glass Panels

Antivandal Protection

Parts* painted upon request in various Ral options, to secure harmony and high aesthetic result, with surrounding place.

Ideal solution, highly recommended by KLEFER, for panoramic lifts.

*Landing mechanism, carriages, toe guard, panoramic cover

Toe guard is part of default equipment on 50/11 Slim landing doors.

Available options:

  • Standard (galvanized)
  • Big (Powder Painted Steel)
  • Stainless Steel Satin (Standard, Big, Equal to sill length)*
  • Stainless Steel Mirror (Standard, Big, Equal to sill length)*
  • Special Finishing*
  • Painted in custom powder Ral color

*Contact the Commercial dpt

Wide range of fixation brackets to meet the specific demands of every installation.

Available types:

A, D, E, F, G, H, J, K, M, Q, V2, V7, V8, W, LM, X, KE, L

Made of durable materials, KLEFER’s sill and sill between frames options are designed and manufactured to endure constant use and withstand the daily traffic.

Available sill options:

  • Aluminum (AL) & Reinforced Aluminum (AR)
  • Colored Anodized Aluminum (T2 & C2)
  • With dust holes

Available sill between frames options:

  • Aluminum
  • Colored Anodized Aluminum & Reinforced Aluminum (T2 & C4)
  • Steel

Landing door locks are certified, following both Directive 2014-33-EU and EAC.

Additionally, KLEFER’s IP options provide water ingress protection, ensuring the safety and functionality of elevators in environments prone to moisture.

Available IP options:

  • IP20 (default)
  • Concentric Rollers: Ø 56 mm

    Eccentric Rollers: Ø 26 mm

    50/11 track

The 50/11 Slim landing doors include safety closing system.

Available options:

  • Spring (default)

Option for unlocking kit for ground floor.

Options

Standard

Panoramic covers

Sill between frames

Sill with dust holes

Toe guards

Unlocking kit

Custom painted parts of the mechanism for panoramic lifts

LOP cut outs
